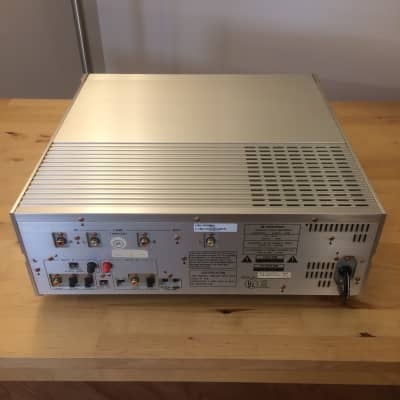

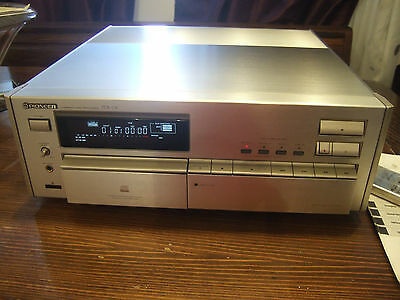

Prodám:  PIONEER --  PIONEER PDR-09

PIONEER PDR-09-------Prodám -- prodejni cena noveho byla---USD $4000.00
dnes cena" -1400 eur to czk,--36 515,21 česká koruna
Rating of a mode
Form Business-use compact disk audio recorder
Using disk An Orange-Book compliance and direct read after write optical disk
Register signal format Red Book / Orange-Book compliance
Sampling frequency: 44.1kHz
Quantifying bit number: 16-bit linear line
Emphasis
50/15microsec -- time of play: Automatic switching
At the time of a sound recording : Analog input-OFF fixture
Digital input-automatic switch
Analog-to-digital converter 1 bit / delta sigma modulation technique (16-bit precision)
Digital analog converter 1 bit / New bit stream scheme
L.R. Independent 2 chip 8DAC (20-bit precision)
Digital fader
Output
Analog output Digital output Meter window Register signal
Analog input (register) : O x O O
Digital input (register) : O x O O
Play : O x O -
Analog I/O
Unbalanced input : RCA pin connector
Input impedance: 50kohm
Reference-input level: -12dBm (-20dB)
Input level span: -6dBm-+12dBm
Unbalanced output : RCA pin connector
Output load impedance: 500ohms
Normal-output level: -12dBm (-20dB)
Balanced input : Canon connector
Input impedance: 600ohms
Reference-input level: -12dBm (-20dB)
Input level span: -6dBm-+24dBm
Balanced output : Canon connector
Output load impedance: 600ohms
Normal-output level: -12dBm (-20dB)
Headphone output : Maximum-output level: -10dBm, an 8-ohm load intensity
Digital input/output
Format : AES/EBU digital interface (CP340/IEC958 compliance)
Noncommercial 2ch digital-audio interface (CP340/IEC958 compliance)
Input : Sampling frequency: 44.1kHz, 48/32kHz (fs translation)
Balanced input : 5.0 Vp-p, 120ohmx1, a canon connector
Coaxial input : 0.5 Vp-p, 75ohmx1, an RCA pin connector
Coaxial output : 0.5 Vp-p, 75ohmx1, an RCA pin connector
Optical input : One line, an EIAJ optical connector
Optical power : One line, an EIAJ optical connector
Power source AC100V, 50Hz/60Hz
Power consumption 38W
Dimensions Width 440x height 160x depth of 420mm
Weight 15.5kg
